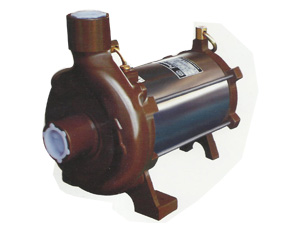

Power plus open well pump sets are manufactured as per IS:14220
With strict control to give trouble free operation
SALIENT FEATURES:
Specially made for high discharge needed open well
Stainless steel shaft, body, nut bolts
Low voltage winding design
*Brass impeller
Dynamically balanced rotor and impeller
APPLICATIONS:
Domestic, industrial, fountains etc…

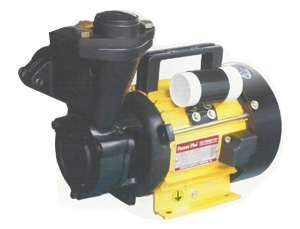

MINI, SELE PRIMING PUMPSET
Pump model
Hp
Pipe size in mm
Total head in meters discharge in lph
6
9
12
15
18
24
30
PCMM-H80
0.50
25*25
3500
2571
2550
1565
1440
900
700
PC-H80
0.50
25*25
160
151
135
90
35
960
660
Power plus open well pump sets are manufactured as per IS:14220
With strict control to give trouble free operation
SALIENT FEATURES:
Stainless steel shaft
Brass impellers
Low voltage winding design
APPLICATIONS:
Water lifting for high head and multistoried building
Car wash
Pressure boosting etc….

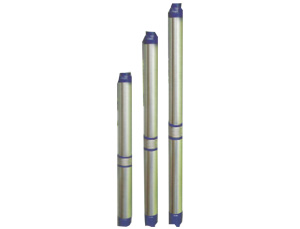

3” BOREWELL SUBMERSIBLE PUMPSET
Pump model
Hp
STAGE
MAX CURRENT IN AMPS
PIPE SIZE IN MM
Total head in meters discharge in lph
900
1200
1500
2000
2400
P3V-10
0.5
10
7.5
1”
90
80
66
40
P3V-15
0.75
15
7.5
1”
160
151
135
90
35
P3V-20
1.0
20
8.5
1”
161
145
108
84
P3V-26
1.5
26
11.5
1”
165
112
P3V-30
2.0
30
13.5
1”
260
250
197
144
P3V-35
2.0
35
115.0
1”
201
166
SALIENT FEATURES:
Dynamically balanced rotor-vibration free, longer life and better efficiency
Stainless steel stator body and rotor shaft for preventive rest
Copper rotor for better starting torque
Low voltage winding design
APPLICATIONS:
Lrrigations, and drip Lrrigations,
Sprinkler, small farms,
Industrial water supply etc…..
Sutiable for 4” borewells

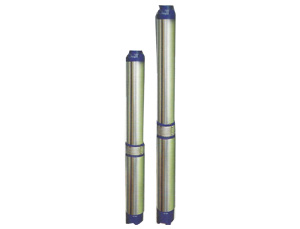

4” BOREWELL SUBMERSIBLE PUMPSET
Pump model
hp
STAGE
MAX CURRENT IN AMPS
PIPE SIZE IN MM
Total head in meters discharge in lph
1000
2200
3200
4200
5100
5500
P4V07
0.75
7
6.0
1”
27
23
15
10
P4V10
1.0
10
7.0
1”
51
45
37
30
12
11
P4V12
1.0
12
7.5
1”
55
45
35
15
10
P4V15
1.0
15
7.5
1”
50
48
24
P4V18
1.0
18
7.8
1”
55
40
15
5
P4V015A
1.5
15
11.0
1”
60
50
35
30
P4V18A
1.5
18
11.2
1”
65
48
27
15
P4V21
1.5
21
11.5
1”
90
60
20
P4V24
1.5
24
12.0
1”
125
105
75
40
P4V20
2.0
20
12.0
1”
97
85
70
55
P4V24A
2.0
24
14.0
1”
105
90
70
50
P4V30
2.0
30
15.0
1”
160
140
105
55
SALIENT FEATURES:
Dynamically balanced rotor-vibration free, longer life and better efficiency
Stainless steel stator body and rotor shaft for preventive rest
Copper rotor for better starting torque
Low voltage winding design
APPLICATIONS:
Lrrigations, and drip Lrrigations,
Sprinkler, small farms,
Industrial water supply etc…..
Sutiable for 4.5” borewells
3PHASE AGRICULTURAL SUBMERSIBLE PUMPSET
PUMP MODEL
POWER HP
PIPE SIZE
MAX.HEAD
(m)
TOATL HEAD IN METERS/DISCHARGE IN LPM
21
24
27
30
33
36
39
48
51
POWTP7.5
7.5
65mm
36
1000
960
930
850
770
580
POWTP10
10
65mm
39
1310
1290
1240
1180
1060
940
740
POWTP12.5
12.5
65mm
48
1200
1175
1125
1060
950
480
POWTP15
15
65mm
51
1270
1220
1160
1120
780
550
SALIENT FEATURES:
This pumps are suitable for more water required area. if the source for water unlimited ,you can run the pumpset round clock.
High grade cast iron motor body and pump casting
High quality carbon bearings in both side
Dynamically balance rotor and impellers
Low voltage winding design.
APPLICATIONS:
Domestic water supply
Hotels, buildings, apartments.
Hospitals, small farms,
Agricultural,
Air condition plants etc…..

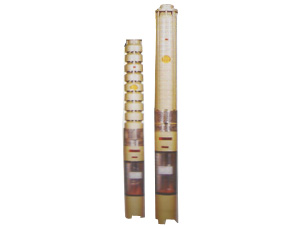

6” THREE PHASE BOREWELL PUMPESET
TYPE
HP
STAGE
DELIVERY
DISCHARGE IN LPM
50
65
80
105
120
150
TOTAL HEAD IN METERS
P6V3
3
9
50
78
75
70
63
54
36
P6V4
4
12
50
105
100
94
84
72
47
P6V5
5
14
50
123
117
110
93
84
56
P6V6
6
18
50
159
150
141
126
110
73
P6V7.5
7.5
20
50
178
168
159
140
122
84
P6V10
10
28
50
245
233
219
196
167
111
All components are manufactured from material as per Indian standard specification. Motors are designed to operate under large voltage functions. Motors have well designed sleeve and thrust bearing for long life. Motors stator & rotor are vacuum impregnated and coated properly to ensure corrosion resistance, High operating efficiencies of pump sets result into high water discharge rate and low power consumption. All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation. The pump sets are compact and slim and can be instelled in narrow wells.
